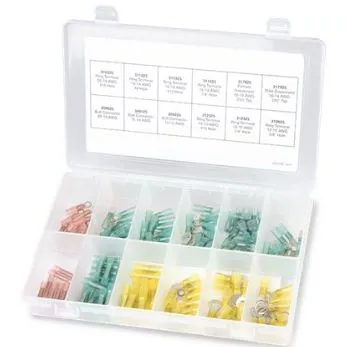

Ancor 160pc Heat Shrink Connector and Terminal Kit

Ancor 160pc Heat Shrink

Connector and Terminal Kit

• Color coded for easy installation and component identification


• Compatable with all NMEA 2000 micro devices

Ancor's NMEA 2000 Power Isolator can be used for isolating power between 2 independent NMEA 2000 networks. Reduce battery current draw by powering one bus off while the other remains operational, or can be used to assist with voltage drop issues on long networks. The yellow couplers connect to the corresponding Ancor backbone cables and tees creating a simplified, color coded network installation.

• Butt Connectors


• (10) 22-18 AWG, (20) 16-14 AWG, (10) 12-10 AWG


• Ring Terminals


• (15) 22-18 AWG #10, (15) 16-14 AWG #8, (15) 16-14 AWG #10, (15) 16-14 AWG 1/4", (10) 12-10 AWG #10, (10) 12-10 AWG 1/4", (10) 12-10 AWG 3/8"


• Disconnects


• (20) 16-14 AWG female, (10) 16-14 AWG male
